Caliper Disc Brakes
The CDB Advantage
CDB Caliper Disc Brakes outperform drum brakes because they have greater thermal capacity and discs are far more resistant to heat checking than drums. Brake performance is related to duty cycle. Each time the brake actuates, it generates heat. How well the brake handles the heat through absorption and dissipation determines the brake’s performance.
Instantaneous energy absorption is related to a brake’s swept friction area. Energy dissipation is related to the percent of swept friction area that is exposed to air.
CDB brakes typically have 20% more swept area and more than twice the exposed swept area of the drum brakes they replace. Discs rarely heat check. They absorb heat from both sides at the same rate. This results in an even rate of expansion across the thickness of the disc.
Heat checking of drums is the result of thermal shock. When a drum brake is applied, the OD of the drum heats up; however, the ID remains cooler. This results in thermal gradient across the rim which produces extreme mechanical forces. These forces cause heat checking.
Key Features
Benefits

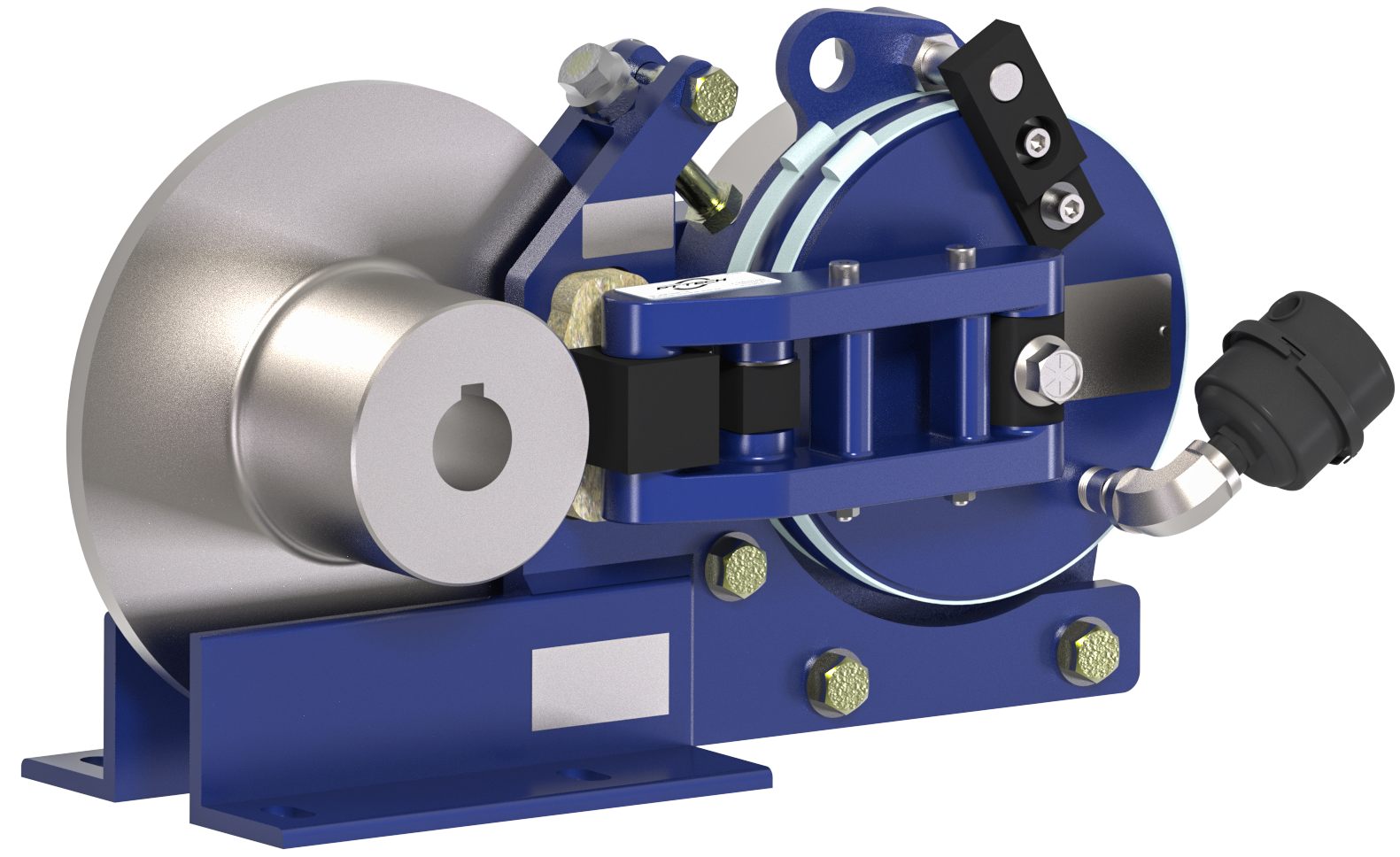

CDB0812A
Technical Specs
| MAX Torque – Series Wound 1/2h | 100 lb-ft |
| MAX Torque – Series Wound 1h | 65 lb-ft |
| MAX Torque – Shunt Wound 1/2h | 100 lb-ft |
| MAX Torque – Shunt Wound 1h | 75 lb-ft |
| Drum Brake Replaced | 8 in |
| Disc Diameter | 12 in |
CDB1014A
Technical Specs
| MAX Torque – Series Wound 1/2h | 200 lb-ft |
| MAX Torque – Series Wound 1h | 130 lb-ft |
| MAX Torque – Shunt Wound 1/2h | 200 lb-ft |
| MAX Torque – Shunt Wound 1h | 150 lb-ft |
| Drum Brake Replaced | 10 in |
| Disc Diameter | 14 in |
CDB1317D
Technical Specs
| MAX Torque – Series Wound 1/2h | 550 lb-ft |
| MAX Torque – Series Wound 1h | 365 lb-ft |
| MAX Torque – Shunt Wound 1/2h | 550 lb-ft |
| MAX Torque – Shunt Wound 1h | 400 lb-ft |
| Drum Brake Replaced | 13 in |
| Disc Diameter | 17 in |
CDB1621D
Technical Specs
| MAX Torque – Series Wound 1/2h | 1,000 lb-ft |
| MAX Torque – Series Wound 1h | 600 lb-ft |
| MAX Torque – Shunt Wound 1/2h | 1,000 lb-ft |
| MAX Torque – Shunt Wound 1h | 750 lb-ft |
| Drum Brake Replaced | 16 in |
| Disc Diameter | 21 in |
CDB1924D
Technical Specs
| MAX Torque – Series Wound 1/2h | 2,000 lb-ft |
| MAX Torque – Series Wound 1h | 1,300 lb-ft |
| MAX Torque – Shunt Wound 1/2h | 2,000 lb-ft |
| MAX Torque – Shunt Wound 1h | 1,500 lb-ft |
| Drum Brake Replaced | 19 in |
| Disc Diameter | 24 in |
CDB2329D
Technical Specs
| MAX Torque – Series Wound 1/2h | 4,000 lb-ft |
| MAX Torque – Series Wound 1h | 2,300 lb-ft |
| MAX Torque – Shunt Wound 1/2h | 4,000 lb-ft |
| MAX Torque – Shunt Wound 1h | 3,000 lb-ft |
| Drum Brake Replaced | 23 in |
| Disc Diameter | 29 in |
CDB2329D–BAL
Technical Specs
| MAX Torque – Series Wound 1/2h | 4,000 lb-ft |
| MAX Torque – Series Wound 1h | 2,600 lb-ft |
| MAX Torque – Shunt Wound 1/2h | 4,000 lb-ft |
| MAX Torque – Shunt Wound 1h | 3,000 lb-ft |
| Drum Brake Replaced | 23 in |
| Disc Diameter | 29 in |
CDB3034D-BAL
Technical Specs
| MAX Torque – Series Wound 1/2h | 6,000 lb-ft |
| MAX Torque – Series Wound 1h | 3,900 lb-ft |
| MAX Torque – Shunt Wound 1/2h | 6,000 lb-ft |
| MAX Torque – Shunt Wound 1h | 9000 lb-ft |
| Drum Brake Replaced | 30 in |
| Disc Diameter | 34 in |
Hydraulic Caliper Disc Brakes
The HCDB Advantage
HCDB Hydraulic Caliper Disc Brakes outperform drum brakes because they have greater thermal capacity and discs are far more resistant to heat checking than drums. Brake performance is related to duty cycle. Each time the brake actuates, it generates heat. How well the brake handles the heat through absorption and dissipation determines the brake’s performance.
Instantaneous energy absorption is related to a brake’s swept friction area. Energy dissipation is related to the percent of swept friction area that is exposed to air.
HCDB brakes typically have 20% more swept area and more than twice the exposed swept area of the drum brakes they replace.
HCDB1015A
Technical Specs
| Torque | 425 lb-ft |
| Disc Weight | 51 lb |
| Max Pressure | 450 psi |
| Thermal Mass | 35 lb |
HCDB1419A
Technical Specs
| Torque | 600 lb-ft |
| Disc Weight | 128 lb |
| Max Pressure | 450 psi |
| Thermal Mass | 51 lb |
HCDB1824A
Technical Specs
| Torque | 900 lb-ft |
| Disc Weight | 201 lb |
| Max Pressure | 450 psi |
| Thermal Mass | 90 lb |
HCDB1824A
Technical Specs
| Torque | 900 lb-ft |
| Disc Weight | 201 lb |
| Max Pressure450 | 450 psi |
| Thermal Mass | 90 lb |
Mobile Caliper Brakes
The MCB Advantage
Our hydraulic mobile service brakes are designed for use on off highway vehicles, extending our application coverage.
Design to brake equipment ranging in weight up to 33,000 kg with multiple calipers per wheel configuration.

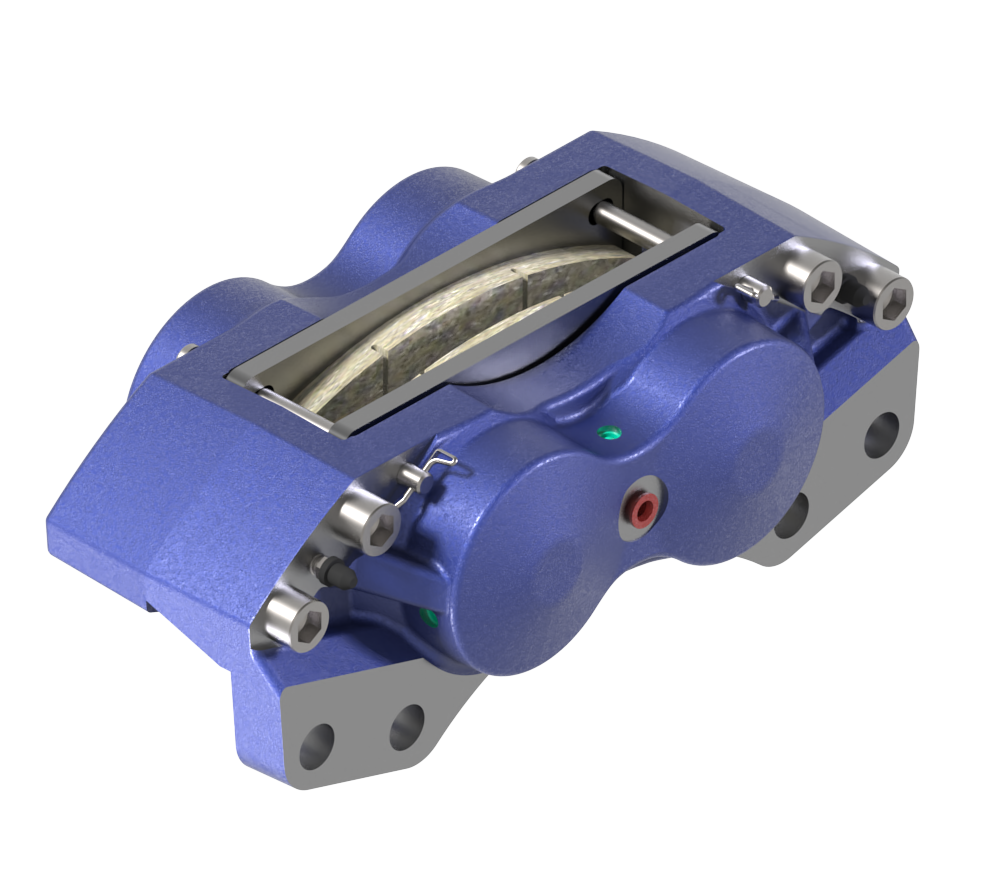

MCB-450
Technical Specs
| Number of Pistons | 4 |
| Nominal Brake Torque @ 11 MPa Actuation Pressure | 13,000 Nm |
| Nominal Brake Torque @ 14 MPa Actuation Pressure | 16,800 Nm |
| Max Operating Pressure | 15 Mpa |
| Number of Brake Actuations to Wearout (@ 67 rpm, 8-10 Mpa, 200-250 kJ) | 80,630 |
| Assembly Weight | 33.88 kg |
| Recommended Rotor OD | 500 mm |
| Recommended Rotor Thickness | 20 mm |

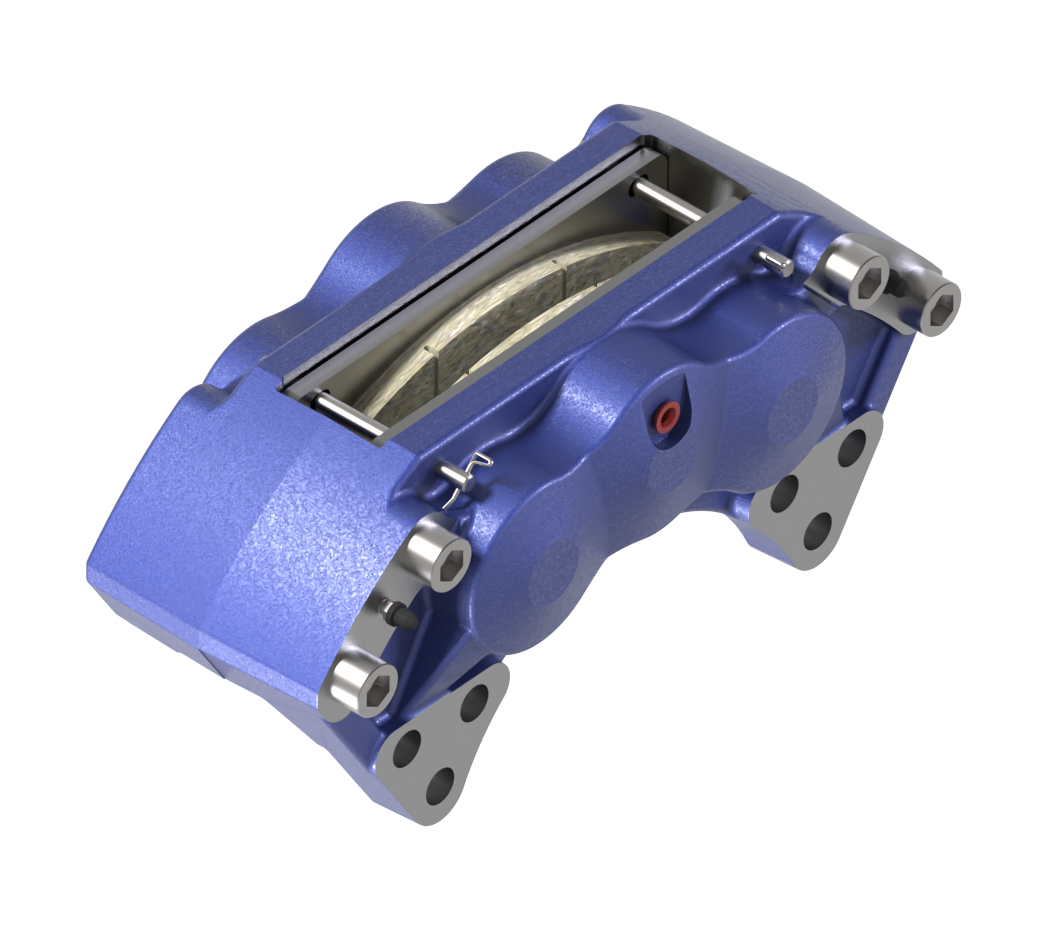

MCB-650
Technical Specs
| Number of Pistons | 6 |
| Nominal Brake Torque @ 11 MPa Actuation Pressure | 19,500 Nm |
| Nominal Brake Torque @ 14 MPa Actuation Pressure | 25,200 Nm |
| Max Operating Pressure | 15 Mpa |
| Number of Brake Actuations to Wearout (@ 67 rpm, 8-10 Mpa, 200-250 kJ) | 80,630 |
| Assembly Weight | 50.95 kg |
| Recommended Rotor OD | 500 mm |
| Recommended Rotor Thickness | 20 mm |
