Clutch Couplings
PT Tech has been designing custom clutch couplings since the early 1980’s. These usually incorporate a one-way clutch and are designed to provide backup drive systems, chain driven inspection and creep drives for conveyors, and “Sunday Drives” for kilns and other equipment. They are used to prevent the main drive from dangerously over speeding the auxiliary drive or from damage caused by rapid cooldown.
SGK Series
SGK-410-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 200 lb·ft |
| Max. Overrunning Speed | 3,600 rpm |
| Max Bores B1 Overrunning End Square Key | 2.250 in |
| A – Outside Diameter | 4.56 in |
| L – Distance between Shaft Ends | 6.23 in |
SGK-410-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 200 lb·ft |
| Max. Overrunning Speed | 3,600 rpm |
| Max Bores B1 Overrunning End Square Key | 2.250 in |
| A – Outside Diameter | 4.56 in |
| L – Distance between Shaft Ends | 6.23 in |
SGK-415-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 600 lb·ft |
| Max. Overrunning Speed | 3,000 rpm |
| Max Bores B1 Overrunning End Square Key | 2.750 in |
| A – Outside Diameter | 6.00 in |
| L – Distance between Shaft Ends | 7.68 in |
SGK-415-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 600 lb·ft |
| Max. Overrunning Speed | 3,000 rpm |
| Max Bores B1 Overrunning End Square Key | 2.750 in |
| A – Outside Diameter | 6.00 in |
| L – Distance between Shaft Ends | 7.68 in |
SGK-425-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 1,500 lb-ft |
| Max. Overrunning Speed | 2,400 rpm |
| Max Bores B1 Overrunning End Square Key | 3.625 in |
| A – Outside Diameter | 8.38 in |
| L – Distance between Shaft Ends | 8.48 in |
SGK-425-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 1,500 lb-ft |
| Max. Overrunning Speed | 2,400 rpm |
| Max Bores B1 Overrunning End Square Key | 3.625 in |
| A – Outside Diameter | 8.38 in |
| L – Distance between Shaft Ends | 8.48 in |
SGK-430-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 4,000 lb-ft |
| Max. Overrunning Speed | 2,000 rpm |
| Max Bores B1 Overrunning End Square Key | 4.375 in |
| A – Outside Diameter | 9.44 in |
| L – Distance between Shaft Ends | 10.47 in |
SGK-430-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 4,000 lb-ft |
| Max. Overrunning Speed | 2,000 rpm |
| Max Bores B1 Overrunning End Square Key | 4.375 in |
| A – Outside Diameter | 9.44 in |
| L – Distance between Shaft Ends | 10.47 in |
SGK-435-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 6,800 lb-ft |
| Max. Overrunning Speed | 1,800 rpm |
| Max Bores B1 Overrunning End Square Key | 5.25 in |
| A – Outside Diameter | 11 in |
| L – Distance between Shaft Ends | 12.66 in |
SGK-435-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 6,800 lb-ft |
| Max. Overrunning Speed | 1,800 rpm |
| Max Bores B1 Overrunning End Square Key | 5.25 in |
| A – Outside Diameter | 11 in |
| L – Distance between Shaft Ends | 12.66 in |
SGK-440-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 11,500 lb·ft |
| Max. Overrunning Speed | 1,500 rpm |
| Max Bores B1 Overrunning End Square Key | 5.875 in |
| A – Outside Diameter | 12.50 in |
| L – Distance between Shaft Ends | 13.33 in |
SGK-440-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 11,500 lb·ft |
| Max. Overrunning Speed | 1,500 rpm |
| Max Bores B1 Overrunning End Square Key | 5.875 in |
| A – Outside Diameter | 12.50 in |
| L – Distance between Shaft Ends | 13.33 in |
SGK-445-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 18,000 lb-ft |
| Max. Overrunning Speed | 1,350 rpm |
| Max Bores B1 Overrunning End Square Key | 6.760 in |
| A – Outside Diameter | 13.62 in |
| L – Distance between Shaft Ends | 14.48 in |
SGK-445-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 18,000 lb-ft |
| Max. Overrunning Speed | 1,350 rpm |
| Max Bores B1 Overrunning End Square Key | 6.760 in |
| A – Outside Diameter | 13.62 in |
| L – Distance between Shaft Ends | 14.48 in |
SGK-610-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 200 lb·ft |
| Max. Overrunning Speed | 5,000 rpm |
| A – Outside Diameter | 4.56 in |
| L – Distance between Shaft Ends | 6.23 in |
SGK-610-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 200 lb·ft |
| Max. Overrunning Speed | 5,000 rpm |
| A – Outside Diameter | 4.56 in |
| L – Distance between Shaft Ends | 6.23 in |
SGK-615-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 600 lb-ft |
| Max. Overrunning Speed | 4,000 rpm |
| A – Outside Diameter | 6.00 in |
| L – Distance between Shaft Ends | 7.68 in |
SGK-615-90
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 600 lb-ft |
| Max. Overrunning Speed | 4,000 rpm |
| A – Outside Diameter | 6.00 in |
| L – Distance between Shaft Ends | 7.68 in |
SGK-625-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 1,500 lb-ft |
| Max. Overrunning Speed | 3,600 rpm |
| A – Outside Diameter | 8.38 in |
| L – Distance between Shaft Ends | 8.48 in |
SGK-625-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 1,500 lb-ft |
| Max. Overrunning Speed | 3,600 rpm |
| A – Outside Diameter | 8.38 in |
| L – Distance between Shaft Ends | 8.48 in |
SGK-630-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 4,000 lb-ft |
| Max. Overrunning Speed | 2,500 rpm |
| A – Outside Diameter | 9.44 in |
| L – Distance between Shaft Ends | 10.47 in |
SGK-630-90
Technical Specs
| Direction of Drive Rotation | counter clockwise |
| Torque Rating | 4,000 lb-ft |
| Max. Overrunning Speed | 2,500 rpm |
| A – Outside Diameter | 9.44 in |
| L – Distance between Shaft Ends | 10.47 in |
SGK-635-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 6,800 lb-ft |
| Max. Overrunning Speed | 1,800 rpm |
| A – Outside Diameter | 11.00 in |
| L – Distance between Shaft Ends | 12.66 in |
SGK-635-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 6,800 lb-ft |
| Max. Overrunning Speed | 1,800 rpm |
| A – Outside Diameter | 11.00 in |
| L – Distance between Shaft Ends | 12.66 in |
SGK-640-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 11,500 lb·ft |
| Max. Overrunning Speed | 1,500 rpm |
| A – Outside Diameter | 12.50 in |
| L – Distance between Shaft Ends | 13.33 in |
SGK-640-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 11,500 lb·ft |
| Max. Overrunning Speed | 1,500 rpm |
| A – Outside Diameter | 12.50 in |
| L – Distance between Shaft Ends | 13.33 in |
SGK-645-80
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 18,000 lb-ft |
| Max. Overrunning Speed | 1,350 rpm |
| A – Outside Diameter | 13.62 in |
| L – Distance between Shaft Ends | 14.48 in |
SGK-645-90
Technical Specs
| Direction of Drive Rotation | counterclockwise |
| Torque Rating | 18,000 lb-ft |
| Max. Overrunning Speed | 1,350 rpm |
| A – Outside Diameter | 13.62 in |
| L – Distance between Shaft Ends | 14.48 in |
SGS Series
SGS-15-601
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 500 lb-ft |
| Max. Overrunning Speed | 4,000 rpm |
| Max. Driver Speed | 1,000 rpm |
| Sprag Lift- Off Speed | 1,200 rpm |
| Allowable Chain Pull | 1,500 lb |
SGS-15-602
Technical Specs
| Direction of Drive Rotation | counter clockwise |
| Torque Rating | 500 lb-ft |
| Max. Overrunning Speed | 4,000 rpm |
| Max. Driver Speed | 1,000 rpm |
| Sprag Lift- Off Speed | 1,200 rpm |
| Allowable Chain Pull | 1,500 lb |
SGS-25-601
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 1,500 lb-ft |
| Max. Overrunning Speed | 3,600 rpm |
| Max. Driver Speed | 1,200 rpm |
| Sprag Lift- Off Speed | 1,200 rpm |
| Allowable Chain Pull | 3,350 lb |
SGS-25-602
Technical Specs
| Direction of Drive Rotation | counter clockwise |
| Torque Rating | 1,500 lb-ft |
| Max. Overrunning Speed | 3,600 rpm |
| Max. Driver Speed | 1,200 rpm |
| Sprag Lift- Off Speed | 1,200 rpm |
| Allowable Chain Pull | 3,350 lb |
SGS-30-601
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 4,000 lb-ft |
| Max. Overrunning Speed | 2,500 rpm |
| Max. Driver Speed | 800 rpm |
| Sprag Lift- Off Speed | 1,000 rpm |
| Allowable Chain Pull | 6,800 lb |
SGS-30-602
Technical Specs
| Direction of Drive Rotation | counter clockwise |
| Torque Rating | 4,000 lb-ft |
| Max. Overrunning Speed | 2,500 rpm |
| Max. Driver Speed | 800 rpm |
| Sprag Lift- Off Speed | 1,000 rpm |
| Allowable Chain Pull | 6,800 lb |
SGS-35-601
Technical Specs
| Direction of Drive Rotation | clockwise |
| Torque Rating | 6,800 lb-ft |
| Max. Overrunning Speed | 1,800 rpm |
| Max. Driver Speed | 650 rpm |
| Sprag Lift- Off Speed | 800 rpm |
| Allowable Chain Pull | 6,800 lb |
SGS-35-602
Technical Specs
| Direction of Drive Rotation | counter clockwise |
| Torque Rating | 6,800 lb-ft |
| Max. Overrunning Speed | 1,800 rpm |
| Max. Driver Speed | 650 rpm |
| Sprag Lift- Off Speed | 800 rpm |
| Allowable Chain Pull | 6,800 lb |

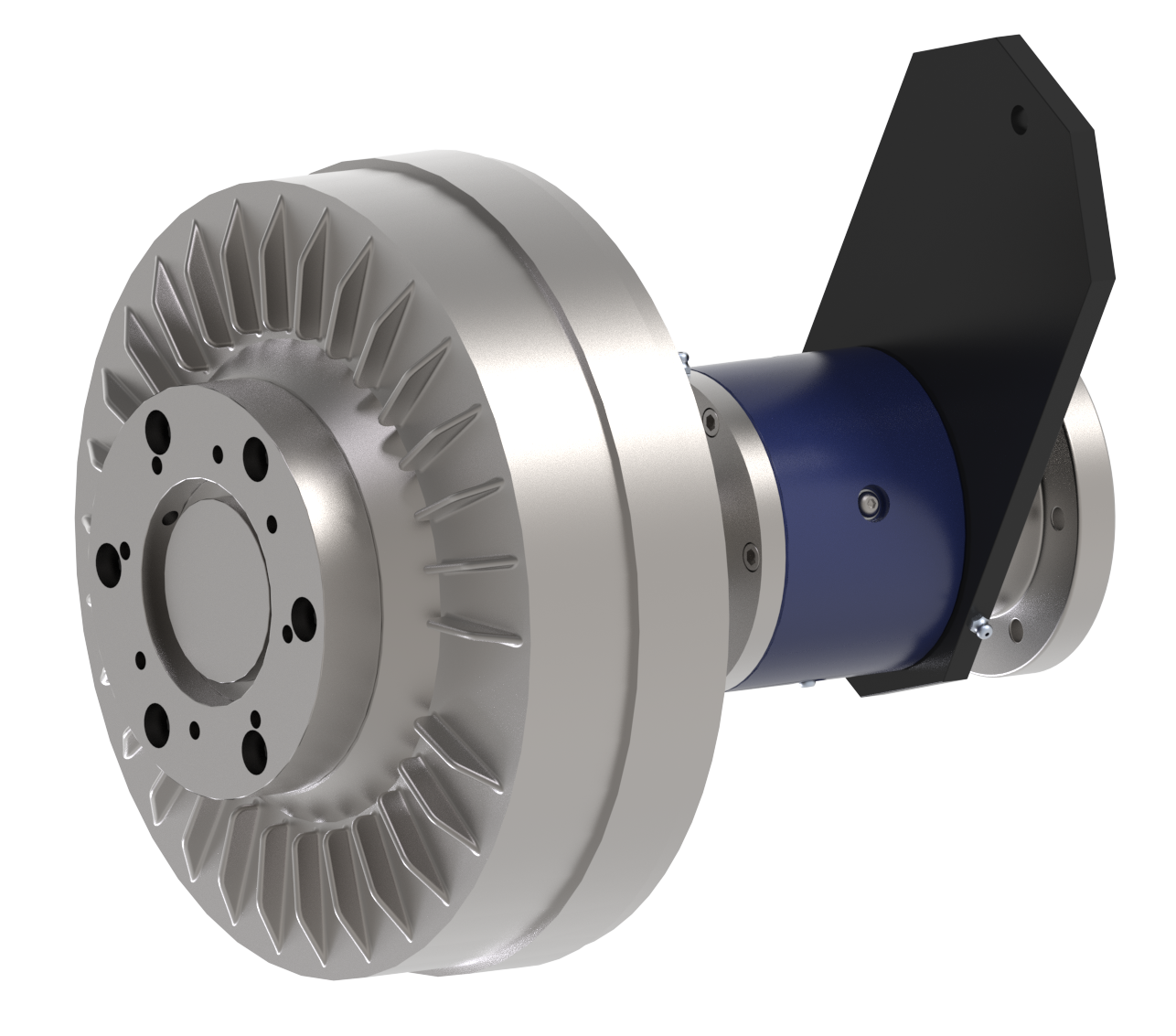

KDK Series
KDK-20
Technical Specs
| Direction of Drive Rotation | clockwise/counter clockwise |
| Torque | 30 lb-ft |
| Energy Capacity | 650,000 ft·lb |
| Max Bore Output | 2.38 in |
| Max Bore Input | 2.88 in |
| Fluid | 64 oz |
KDK-30
Technical Specs
| Direction of Drive Rotation | clockwise/counter clockwise |
| Torque | 30 lb-ft |
| Energy Capacity | 1,250,000 ft·lb |
| Max Bore Output | 2.38 in |
| Max Bore Input | 2.88 in |
| Fluid | 150 oz |
KDK-40
Technical Specs
| Direction of Drive Rotation | clockwise/counter clockwise |
| Torque | 70 lb-ft |
| Energy Capacity | 2,000,000 ft·lb |
| Max Bore Output | 3.63 in |
| Max Bore Input | 3.25 in |
| Fluid | 256 oz |
KDK-50
Technical Specs
| Direction of Drive Rotation | clockwise/counter clockwise |
| Torque | 70 lb-ft |
| Energy Capacity | 3,000 ft·lb |
| Max Bore Output | 3.63 in |
| Max Bore Input | 3.25 in |
| Fluid | 352 oz |
